RELYUM will meet market expectations with the launch of the RELY-10TSN20. With a larger number of ports (supporting TSN), less equipment will be required and a much easier-to-manage network will be obtained.

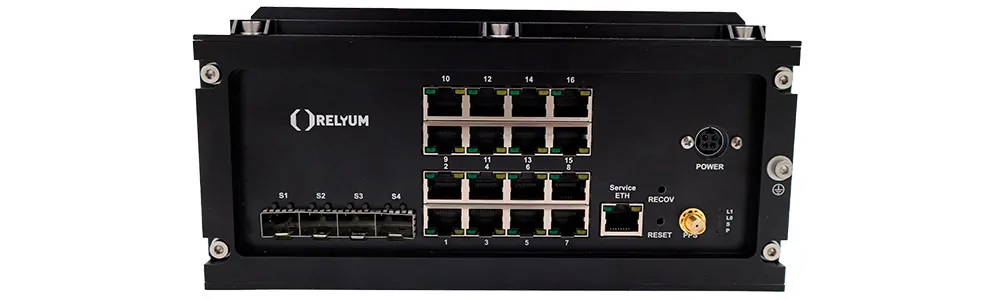

RELYUM announces the launch of a new TSN switch. The RELY-10TSN20, along with the 12-port version it launched a year ago, completes the RELY-TSN-BRIDGE family.This new platform incorporates the same hardware enhancements as the 12-port, such as a better processor or FPGA. It supports a configuration with 16 1Gbps copper TSN ports + 4x 1G/10Gbps fiber optic TSN SFP+ ports + 1x 1Gbps service port, providing the greatest flexibility to the end user.
Compatible with all TSN Standards
Turning to the details, this new switch includes a more powerful UltraScale MPSoC, being able to support the following TSN standards:
- IEEE802.1AS 2020: Time synchronization. Supporting two PTP domains.
- IEEE 802.1Qbv: Time-Aware Scheduler.
- IEEE 802.1Qav: Credit-Based Shaper.
- IEEE 802.1CB: Frame Replication and Elimination for Reliability.
- IEEE 802.1Qci: Per Stream Filtering and Policing.
- IEEE 802.1Qcc: Stream Reservation Protocol (SRP) Enhancements and Performance Improvements, among others.
Additionally, this device includes other valuable mechanisms. Making use of SoC-e’s TSN technology, the RELY-10TSN20 supports optimized Mask and Match Stream Identification and PCP & DSCP prioritization.
When it comes to security, the device supports IEEE 802.1X. This standard is an IEEE Standard for port-based Network Access Control. It is used for access control, DoS attack prevention, and port mirroring for diagnosis.
It can be centrally configured from RELYUM’s TSN Configurator. This is a new TSN configuration tool to be released together with the new HW platform, or from any other third-party configuration system that is compliant with IEEE 802.1Qcc standard and implements YANG modeled configuration files over Netconf communication.
Resists everything
The RELY-10TSN20has a robust and ruggedized design. It includes extended-range components and a thermal & dissipation extended-range guarantee that it can be installed in the most demanding environments.
After all that has been said, we can go on listing advantages and try to persuade you that it is worth it, but the best argument is to try it and convince yourself.
Upcoming models
RELY-10TSN20 is a series of products to be launched throughout 2023 that will incorporate different TSN features and TSN speeds up to 10G. Thanks to the configurable technology of the FPGAs, these devices can be upgraded in the future with future releases of RELYUM switches. Stay tuned.
