MILS0802-SR

L2/L3 SFF Military Switch Router

Overview

As modern military vehicles become increasingly digitised, Ethernet has become a critical backbone for enabling high-speed, reliable, and interoperable communications between onboard systems. From sensor integration to real-time data sharing, Ethernet ensures seamless connectivity across mission-critical platforms.

The MILS0802-SR switch is a compact unit that combines high-performance Ethernet switching with edge computing capabilities, enabling real-time data processing and connectivity in space-constrained military environments.

Compact in size. Powerful in performance. Designed for duty.

Key Features

  1. 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 1000BASE-SX/LX Fiber Optic Ethernet ports

  2. Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities.

  3. Advanced security means including IEEE 802.1X and MACsec
  4. Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
  5. Sealed military grade and compact enclosure with MIL-STD-1275E power supply

Technical Specifications

  • Communication Interfaces

    • 8x 10/100/1000BASE-T Copper Ethernet ports
    • 2x 1000BASE-SX/LX Fibre Optic Ethernet ports
    • 1x 10/100/1000BASE-T Ethernet Service port
    • 1x 50 ohms PPS output (Miscellaneous connector)
    • 1x RS-422 PPS output (Miscellaneous connector)
    • 2x RS-232 serial line (Miscellaneous connector)

  • Layer 2 Features

    • IEEE 802.3-2008 (Ethernet)
    • Automatic MAC address learning and aging
    • Static MAC Table
    • Port-Based Virtual LANs (VLANs):
      • Logical segmentation of network for optimal use of bandwidth
      • IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
      • IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
    • IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
    • Port rate limiting
    • Storm control for flooded broadcast, multicast and unicast
    • Layer 2 multicast filtering
    • IGMP Snooping (up to 1024 multicast filters)

  • Redundancy

    • Spanning Tree Protocol:
      • IEEE 802.1D (STP)
      • IEEE 802.1w (RSTP)
      • IEEE 802.1s (MSTP)

  • Layer 3 Features

    • IPv4/IPv6 unicast and multicast routing
    • Static routing
    • Virtual Router Redundancy Protocol (VRRP)
    • DSCP ToS/QoS
    • Source/Destination NAT
    • Dynamic Routing:
      • OSPFv2, OSPFv3
      • RIPv1, RIPv2, RIPng
      • BGPv4
      • EIGRP
      • PIM-SM (IPv4 and IPv6)
    • Policy Based Routing (PBR)*
    • Proxy ARP
    • * Supported in 2026

  • Gateway

    • Edge-computing capabilities for user defined applications
    • Support for DDS standard and MQTT protocol in KVM Virtual Machine for user application

  • Synchronization

    • IEEE 1588-2008 v2 (PTPv2)
    • IEEE 1588 Stateless Transparent Clock (TC)
    • IEEE 1588 Ordinary Clock (Master-Slave)
    • Time Bridge operation: NTP ↔ PTP
    • NTP (Server/Client)

  • Security

    • IEEE 802.1X for port-based network access control
    • MAC port binding & authentication for login security
    • RADIUS authentication
    • RBAC (Role Based Access Control)
    • Selective ports disabling capability
    • Unsecure protocols disabling capability
    • Per port ingress and egress port mirroring
    • HTTPS for web interface
    • Secure Shell (SSH) Protocol v2 for CLI
    • TPM 2.0 IC for identity authentication
    • Encryption/authentication & signature for firmware and bitstream
    • Secure-boot capability
    • IEEE 802.1AE – MACsec support
    • Custom ACL level 2, 3, 4 for routed traffic

  • Configuration & Management

    • HTTPS web interface
    • SSHv2 CLI
    • SNMP V1/V2c/V3 support
    • SNMP V3 encrypted authentication and access
    • SNMP over TLS
    • Encrypted and signed firmware/bitstream upgrades
    • Saving and restoring configuration
    • Per port statistics
    • Internal status monitoring and logging
    • Syslog event notification
    • DHCP/DHCPv6 server and relay
    • Built-in-Test capability:
      • PBIT (Power-on BIT)
      • CBIT (Continuous BIT)
      • IBIT (Initiated BIT)
    • In-band or out-of-band management
    • RS-232 serial console

  • Processing

    • Xilinx UltraScale+ MPSoC device:
      • 2x 64bit ARM-Cortex-A53
      • 2x 32bit ARM-Cortex-R5F
      • 1x 16nm UltraScale+ FPGA
    • Up to 4GB DDR4 RAM
    • 32GB eMMC Flash
    • 512Mb QSPI Flash

  • Physical & Electrical Characteristics

    • Military certified fanless rugged design

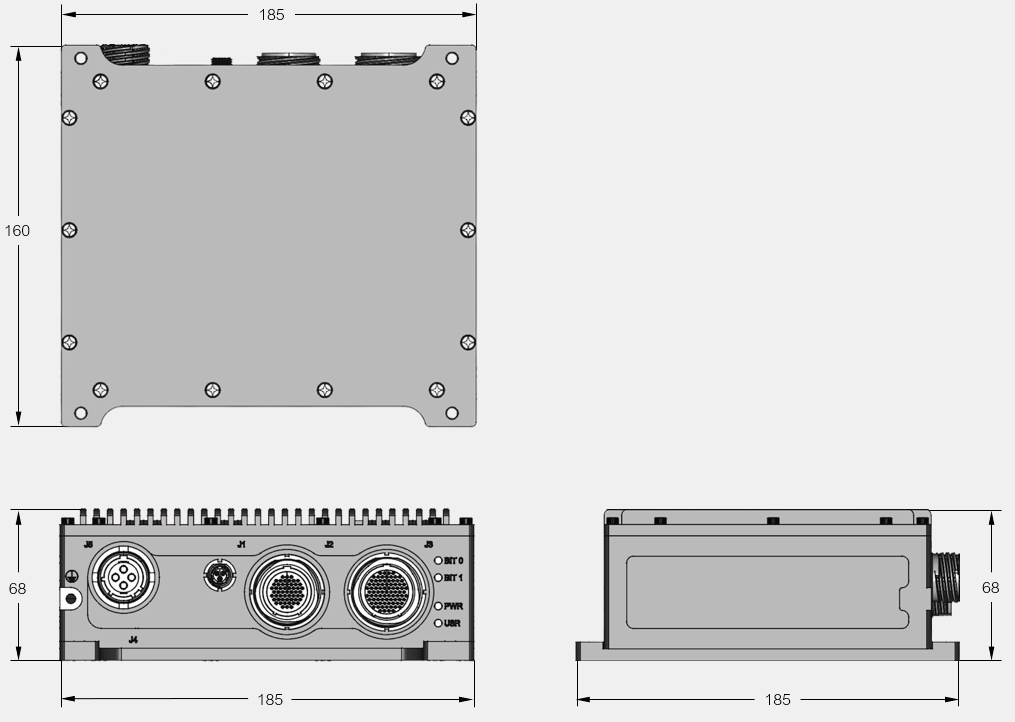

    • Dimensions (mm): 185(W) x 160(D) x 68(H)
    • Weight: 1.9kg
    • Power Input: 28VDC
    • Power consumption: TBD
    • Connectivity via D38999 connector

  • MTBF

    • TBD hours GB@25
    • MTTR = TBD hours

  • Warranty

    • 2 years

  • Export Control

    • ITAR Free

  • Certifications

    The following certifications are expected:

    • MIL-STD-461G: CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103
    • MIL-STD-810G: 500.5, 501.5, 502.5, 506.5, 507.5, 508.6, 509.5, 510.5, 513.6, 514.6, 516.6
    • RTCA DO-160G: Sections 4, 7, 8, 15–21, 25, 26
    • MIL-STD-1275E
    • ESD EN61000-4-2
    • IEC-60529 – IP67
    • CE Certification

    For more info, contact your sales representative.
