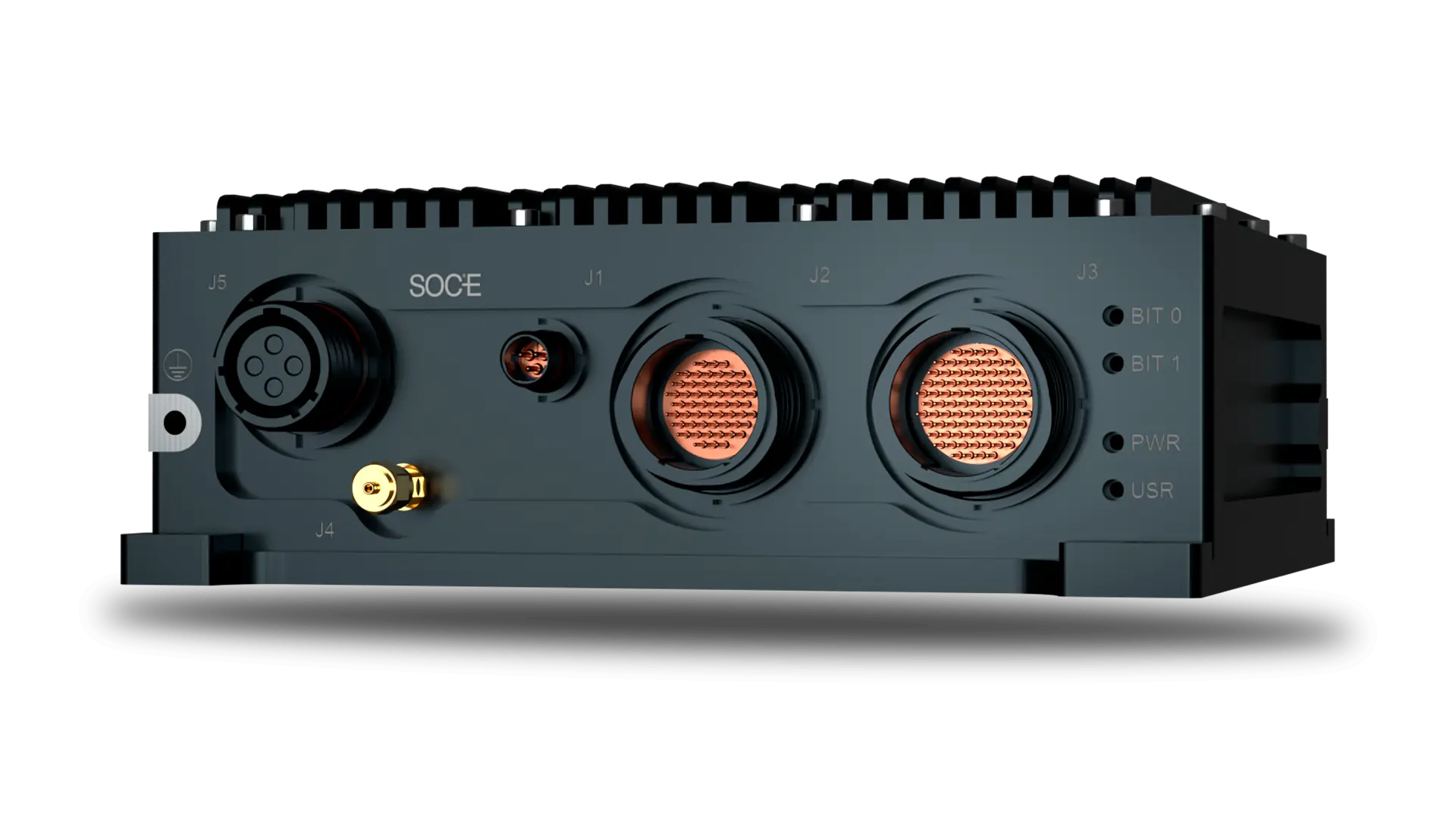

MILS0802-10GM

Time Server and L2/L3 SFF Military Switch Router

Overview

In modern defence operations, precise time synchronization is a mission-critical asset. Time is the invisible backbone of coordinated action. Without accurate synchronization, communication, targeting, and situational awareness can be compromised quicky.

The compact MILS0802-10GM military switch is designed to deliver secure, accurate, and resilient timing at the tactical edge. Its small form factor allows for seamless deployment in mobile platforms, UAVs, tactical vehicles, and field command posts, where space and power are at a premium.

Offering speeds up to 10Gbps, SOC-E’s advanced cybersecurity features are combined with time serving functionalities in this space-efficient switch.

Key Features

  1. Grand Master and Clock bridging (NTP <-> PTP <-> GNSS) capabilities with accurate time distribution via IEEE 1588 (PTP)
  2. 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 10GbE-SR/LR Fiber Optic Ethernet ports
  3. Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
  4. Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others

  5. Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
  6. Sealed military grade and compact enclosure with MIL-STD-1275E power supply

Technical Specifications

  • Communication Interfaces

    • 8x 10/100/1000BASE-T Copper Ethernet ports
    • 2x 10GbE-SR/LR Fibre Optic Ethernet ports
    • 1x 10/100/1000BASE-T Ethernet Service port
    • 1x 50 ohms PPS output (Miscellaneous connector)
    • 1x RS-422 PPS output (Miscellaneous connector)
    • 1x 50 ohms PPS input (Miscellaneous connector)
    • 1x RS-422 PPS input (Miscellaneous connector)
    • 2x RS-232 serial line (Miscellaneous connector)
    • 1x 10MHz input (Miscellaneous connector)

  • Layer 2 Features

    • IEEE 802.3-2008 (Ethernet)
    • Automatic MAC address learning and aging
    • Static MAC Table
    • Port-Based Virtual LANs (VLANs):
      • Logical segmentation of network for optimal use of bandwidth
      • IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
      • IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
    • IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
    • Port rate limiting
    • Storm control for flooded broadcast, multicast and unicast
    • Layer 2 multicast filtering
    • IGMP Snooping (up to 1024 multicast filters)
    • Jumbo frame support

  • Redundancy

    • Spanning Tree Protocol:
      • IEEE 802.1D (STP)
      • IEEE 802.1w (RSTP)
      • IEEE 802.1s (MSTP)

    • Layer 3 Features

      • IPv4/IPv6 unicast and multicast routing
      • Static routing
      • Virtual Router Redundancy Protocol (VRRP)
      • DSCP ToS/QoS
      • Source/Destination NAT
      • Dynamic Routing:
        • OSPFv2, OSPFv3
        • RIPv1, RIPv2, RIPng
        • BGPv4
        • EIGRP
        • PIM-SM (IPv4 and IPv6)
      • Policy Based Routing (PBR)*
      • Proxy ARP


        * Supported in 2026

    • Gateway

      • Edge-computing capabilities for user defined applications
      • Support for DDS standard and MQTT protocol in KVM Virtual Machine for user application

    • Synchronization

      • Time reference obtained from an internally populated GPS chipset (external antenna required through the antenna connector), or from an external provided PPS and serial (NMEA message) input
      • GNSS: Time source, geolocation. GPS L1, Galileo, GLONASS G1 and BeiDou B1 frequencies
      • Extended time source holdover capability range
      • Battery backup high accuracy RTC (deviation of ± 3 ppm typ., ± 250 ms/day)
      • Time Bridge operation: NTP <-> PTP <-> GNSS
      • IEEE 1588-2008 v2 (PTPv2): Grand Master, Master, Slave, Transparent Clock: – PTP Grand Master synchronization accuracy to the reference clock: ± 50 ns (± 25 ns in optimized mode for static position with GNSS reference
      • NTP: Server/Client: – NTP v4 (RFC 5905), compatible with NTP v3 (RFC 1305), v2 (RFC- 1119) and v1 (RFC 1059) – SNTP (RFC 4330)

    • Security

      • IEEE 802.1X for port-based network access control
      • MAC port binding & authentication for login security
      • RADIUS authentication
      • RBAC (Role Based Access Control)
      • Selective ports disabling capability
      • Unsecure protocols disabling capability
      • Per port ingress and egress port mirroring
      • HTTPS for web interface
      • Secure Shell (SSH) Protocol v2 for command line interface
      • TPM 2.0 IC for identity authentication
      • Encryption/authentication & signature for firmware and bitstream
      • IEEE 802.1AE – MACsec (Media Access Control Security) support
      • Custom ACL level 2,3,4 for routed traffic.
      • Virtual Private Network (VPN):
        • Site to site and remote VPN support
        • IPsec VPN tunnels
        • L2TP VPN tunnels
        • PPTP VPN tunnels
        • Gretap VPN tunnels
        • SSL-based OpenVPN
      • Stateful inspection firewall
      • Intrusion Prevention System /Intrusion Detection System

    • Configuration & Management

      • HTTPS web interface
      • SSHv2 command line interface (CLI)
      • SNMP V1/V2c/V3 protocol support
      • SNMP V3 encrypted authentication and access security
      • SNMP over TLS support
      • Encrypted and digitally signed firmware/bitstream upgrades
      • Saving and restoring configuration
      • Internal status monitoring and logging
      • Statistics independent per port
      • Event notification through Syslog
      • DHCP/DHCPv6 server and relay
      • Built-in-Test capability including:
        • PBIT (Power-on BIT)
        • CBIT (Continuous BIT)
        • IBIT (Initiated BIT)
      • In-band management via any Ethernet switch port or out-of-band via Ethernet service port
      • RS-232 serial console

    • Processing

      • Xilinx UltraScale+ MPSoC device:
        • 2x 64bit CPU ARM-Cortex-A53
        • 2x 32bit CPU ARM-Cortex-R5F
        • 1x 16nm UltraScale+ FPGA
      • Up to 4GB DDR4 RAM memory
      • 32GB eMMC Flash memory
      • 512Mb QSPI Flash memory

    • Physical & Electrical Characteristics

      • Military certified fanless rugged design
      • Dimensions (mm): 185(W) | 160(D) | 68(H)
      • Weight: 1.9kg (combination of metalwork, PSU and payload)
      • Power Input: 28VDC
      • Power consumption: TBD
      • Copper, fibre optic, power supply and Miscellaneous port with RS-232/PPS/capability via D38999 connector

    • MTBF

      • TBD hours GB@25
      • MTTR = TBD hours

    • Warranty

      • 2 years

    • Export Control

      • ITAR Free

    • Certifications

      The following certifications are expected to be achieved by the switch:

      • MIL-STD-461G : CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103
      • MIL-STD-810G: Methods: 500.5, 501.5, 502.5, 504.1, 506.5, 507.4, 508.6, 509.5, 513.6, 514.7, 516.6
      • RTCA DO-160G: Section 4, 7, 8, 15, 16, 17, 18, 19, 20, 21, 25, 26
      • MIL-STD-1275E
      • ESD EN61000-4-2
      • IEC-60529 – IP67
      • CE Certification

      For more information, please contact your sales representative.
