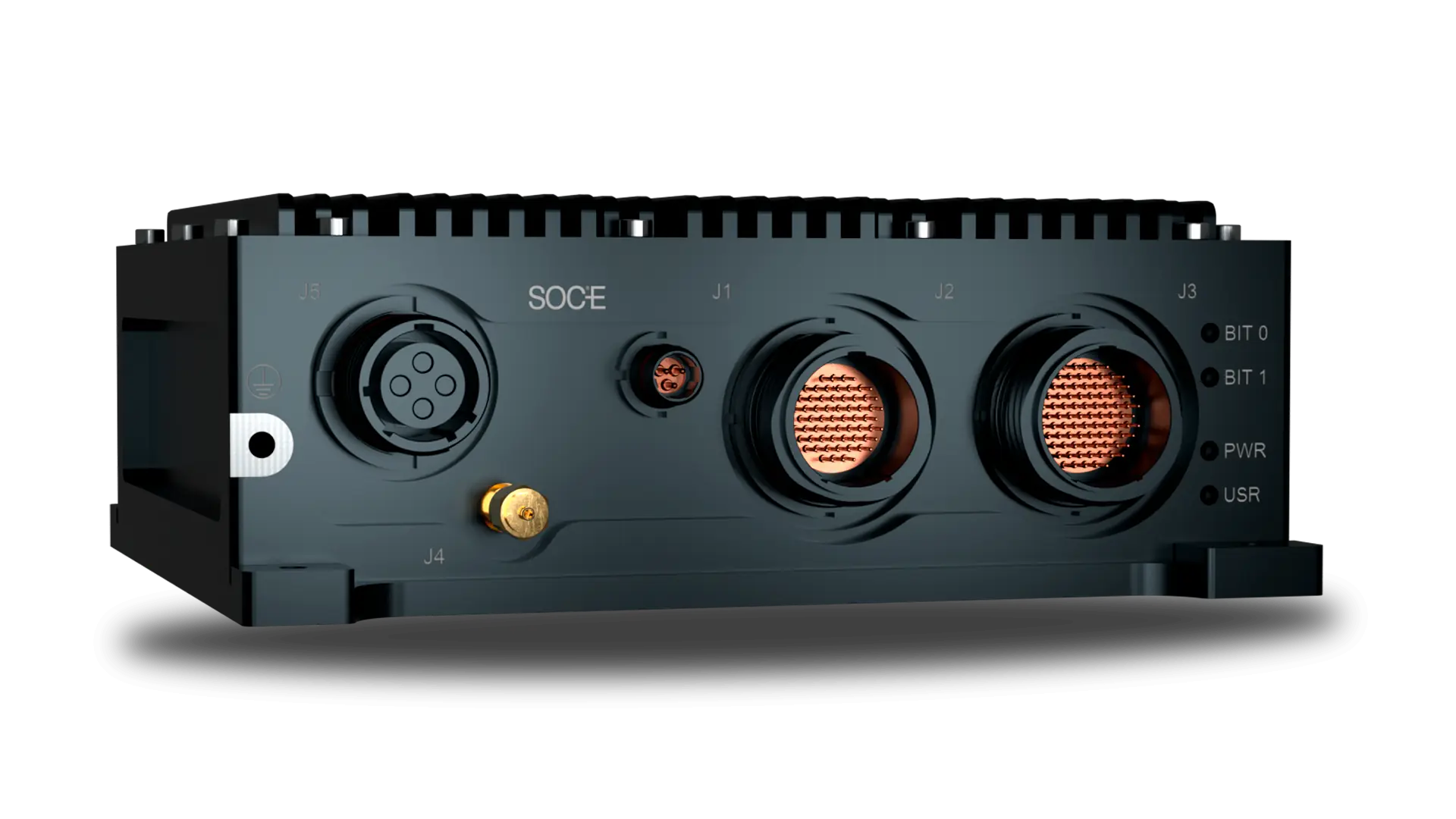

MILS0802-10TSN

Time-Sensitive Networking SFF Military Switch

Overview

In modern defence systems, real-time data transport is critical. Timing and bandwidth define mission success.

The MILS0802-10TSN is a rugged, compact military switch with integrated TSN capabilities designed to deliver deterministic Ethernet performance and high-speed connectivity up to 10 Gbps, enabling time-critical data flows across tactical systems.

Built for the most demanding operational environments, its small form factor allows seamless integration into space-constrained platforms such as ground vehicles, and mobile command nodes. Time-Sensitive Networking (TSN) ensures bounded latency, low jitter, and synchronized traffic, making it ideal for real-time applications.

With full support for TSN standards and military-grade hardening, MILS0802-10TSN switch provides both performance and resilience in the harshest conditions.

Key Features

  1. 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 10GbE-SR/LR Fibre Optic Ethernet ports
  2. Reconfigurable MPSoC platform with edge computing capabilities to be fully compliant with IEEE 802.1DP and other TSN profiles
  3. “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
  4. All-in one equipment with Grand Master and Clock bridging capabilities with accurate time distribution via IEEE 802.1AS

  5. Advanced security means including IEEE 802.1X and MACsec
  6. Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port, compliant with IEEE 802.1Qcc for centralised configuration through YANG model configuration files
  7. Sealed military grade and compact enclosure with MIL-STD-1275E power supply

Technical Specifications

  • Communication Interfaces

    • 8x 10/100/1000BASE-T Copper Ethernet ports
    • 2x 10GbE-SR/LR Fibre Optic Ethernet ports
    • 1x 10/100/1000BASE-T Ethernet Service port
    • 1x 50 ohms PPS output (Miscellaneous connector)
    • 1x RS-422 PPS output (Miscellaneous connector)
    • 1x 50 ohms PPS input (Miscellaneous connector)
    • 1x RS-422 PPS input (Miscellaneous connector)
    • 2x RS-232 serial line (Miscellaneous connector)
    • 1x 10MHz input (Miscellaneous connector)

  • Layer 2 Features

    • IEEE 802.3-2008 (Ethernet)
    • Automatic MAC address learning and aging
    • Static MAC Table
    • Port-Based Virtual LANs (VLANs):

      • Logical segmentation of network for optimal use of bandwidth
      • IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
      • IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
    • IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
    • Port rate limiting
    • Storm control for flooded broadcast, multicast and unicast
    • Layer 2 multicast filtering
    • IGMP Snooping (up to 1024 multicast filters)
    • Jumbo frame support
    • Spanning Tree Protocol

      • IEEE 802.1D (STP)
      • IEEE 802.1w (RSTP)
      • IEEE 802.1s (MSTP)

  • TSN Features

    • IEEE 802.1AS – Timing and Synchronization
    • IEEE 802.1Qav – Credit Based Shaper (CBS)
    • IEEE 802.1Qbv – Time Aware Shaper (TAS)
    • IEEE 802.1Qci – Per-Stream Filtering and Policing
    • IEEE 802.1CB – Frame Replication and Elimination for Reliability (FRER)
    • IEEE 802.1Qcc – Stream Reservation Protocol (SRP) Enhancements and Performance Improvements
    • 4 priority queues
    • Port configuration:

      • 2x 10GbE-SR/LR ports with support for IEEE 802.1AS, IEEE 802.1Qav, IEEE 802.1Qbv, IEEE 802.1CB, IEEE 802.1Qci and IEEE 802.1Qcc
      • 4x 10/100/1000BASE-T ports with support for IEEE 802.1AS, IEEE 802.1Qav, IEEE 802.1Qbv and IEEE 802.1Qcc
      • 4x 10/100/1000BASE-T regular Ethernet ports

    For other configurations, contact your sales representative.

  • Gateway

    • Edge-computing capabilities for user defined applications
    • Support for DDS standard and MQTT protocol in KVM Virtual Machine for user application (optional)
    • Compliant with “DDS Extension for TSN” (OMG Group Standard)

  • Synchronization

    • IEEE 802.1AS – Timing and Synchronization
    • Time server and time bridging capabilities
    • Time reference obtained from an internally populated GPS chipset (external antenna required through the antenna connector), or from an external provided PPS and serial (NMEA message) input
    • GNSS: Time source, geolocation. GPS L1, Galileo, GLONASS G1 and BeiDou B1 frequencies
    • Battery backup high accuracy RTC (deviation of ± 3 ppm typ., ± 250 ms/day)
    • Time Bridge operation: NTP <-> gPTP <-> GNSS
    • IEEE 802.1AS: Time Aware Relay:  – gPTP Grand Master synchronization accuracy to the reference clock: ± 50 ns (±  25 ns in optimized mode for static position with GNSS reference)
    • NTP Server/Client:
      • NTP v4 (RFC 5905), compatible with NTP  v3 (RFC 1305), v2 (RFC- 1119) and v1 (RFC  1059)
      • SNTP (RFC 4330)

    • Security

      • IEEE 802.1X for port-based network access control
      • MAC port binding & authentication for login security
      • RADIUS authentication
      • RBAC (Role Based Access Control)
      • Selective ports disabling capability
      • Unsecure protocols disabling capability
      • Per port ingress and egress port mirroring
      • HTTPS for web interface
      • Secure Shell (SSH) Protocol v2 for command line interface
      • TPM 2.0 IC for identity authentication
      • Encryption/authentication & signature for firmware and bitstream
      • IEEE 802.1AE – MACsec (Media Access Control Security) support

    • Configuration & Management

      • HTTPS web interface
      • SSHv2 command line interface (CLI)
      • SNMP V1/V2c/V3 protocol support
      • SNMP V3 encrypted authentication and access security
      • SNMP over TLS support
      • Netconf protocol (YANG model-based configuration) support
      • Encrypted and digitally signed firmware/bitstream upgrades
      • Saving and restoring configuration
      • Internal status monitoring and logging
      • Event notification through Syslog
      • Statistics independent per port
      • DHCP/DHCPv6 server and relay
      • Built-in-Test capability including:
        • PBIT (Power-on)
        • CBIT (Continuous)
        • IBIT (Initiated)
      • In-band management via any Ethernet switch port or out-of-band via Ethernet service port
      • RS-232 serial console

    • Processing

      • Xilinx UltraScale+ MPSoC device:
        • 2x 64bit ARM Cortex-A53
        • 2x 32bit ARM Cortex-R5F
        • 1x 16nm UltraScale+ FPGA
      • Up to 4GB DDR4 RAM memory
      • 32GB eMMC Flash memory
      • 512Mb QSPI Flash memory

    • Physical & Electrical

      • Military certified fanless rugged design
      • Dimensions (mm): 185(W) | 170(D) | 98(H)
      • Weight: 1.9kg (combination of metalwork, PSU and payload)
      • Power Input: 28VDC
      • Power consumption: TBD
      • Copper, fibre optic, power supply and Miscellaneous port with RS-232/PPS capability via D38999 connector

    • MTBF

      • TBD hours @25°C
      • MTTR: TBD hours

    • Warranty

      • 2 years

    • Export Control

      • ITAR Free

    • Certifications

      The following certifications are expected to be achieved by the switch:

      • MIL-STD-461G CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103
      • MIL-STD-810G Methods: 500.5, 501.5, 502.5, 506.5, 507.5, 508.6, 509.5, 510.5, 513.6, 514.6, 516.6
      • RTCA DO-160G Sections: 4, 7, 8, 15, 16, 17, 18, 19, 20, 21, 25, 26
      • MIL-STD-1275E
      • ESD EN61000-4-2
      • IEC-60529 – IP67
      • CE Certification

      For more info, contact your sales representative.
