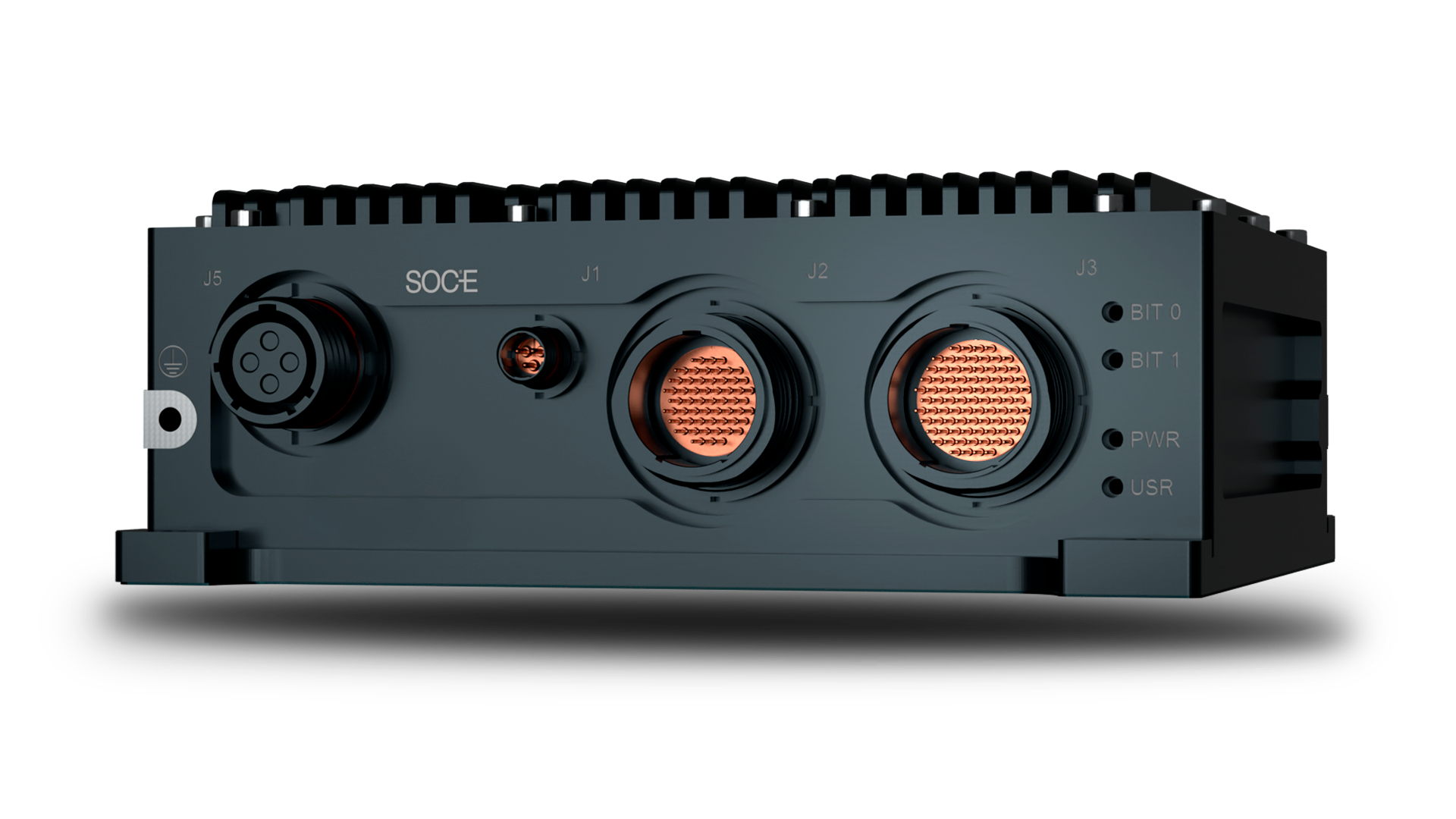

Featured image

MILS0802-SSR

L2/L3 SFF Military Secure Switch Router

Overview

The MILS0802-SSR is a compact military-grade switch engineered to deliver secure, high-reliability communications in space-constrained, high-risk operational environments. Designed with tactical flexibility in mind, its minimal size allows for seamless integration into space-constrained platforms, tactical vehicles, and forward-deployed systems, without compromising on performance.

With embedded encryption and advanced cybersecurity features, it ensures data confidentiality, integrity, and availability even in contested or electronically hostile zones.

Small in form. Secure in function. Built for the mission.

Key Features

  1. 8x 10/100/1000BASE-T Copper Ethernet ports, 2x 1000BASE-SX/LX Fiber Optic Ethernet ports
  2. Full in-house design (including networking and synchronization IP Cores) based on a reconfigurable MPSoC platform with edge computing capabilities
  3. Firewall and VPN capabilities, combined with advanced security means including IEEE 802.1X and MACsec, among others
  4. Clock bridging capabilities with accurate time distribution via IEEE 1588 (PTP)

  5. Simplified management and monitoring via a user-friendly HTTPS web interface or a flexible console port
  6. Sealed military grade and compact enclosure with MIL-STD-704/MIL-STD-1275E power supply

Technical Specifications

  • Communication Interfaces

    • 8x 10/100/1000BASE-T Copper Ethernet ports
    • 2x 1000BASE-SX/LX Fibre Optic Ethernet ports
    • 1x 10/100/1000BASE-T Ethernet Service port
    • 1x 50 ohms PPS output (Miscellaneous connector)
    • 1x RS-422 PPS output (Miscellaneous connector)
    • 2x RS-232 serial line (Miscellaneous connector)

  • Layer 2 Features

    • IEEE 802.3-2008 (Ethernet)
    • Automatic MAC address learning and aging
    • Static MAC Table
    • Port-Based Virtual LANs (VLANs):
      • Logical segmentation of network for optimal use of bandwidth
      • IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
      • IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
    • IEEE 802.1AB for LLDP
    • Port rate limiting
    • Storm control for broadcast, multicast and unicast
    • Layer 2 multicast filtering
    • IGMP Snooping (up to 1024 multicast filters)

  • Redundancy

    • Spanning Tree Protocol:
      • IEEE 802.1D (STP)
      • IEEE 802.1w (RSTP)
      • IEEE 802.1s (MSTP)

  • Layer 3 Features

    • IPv4/IPv6 unicast and multicast routing
    • Static routing
    • Virtual Router Redundancy Protocol (VRRP)
    • DSCP ToS/QoS
    • Source/Destination NAT
    • Dynamic Routing:
      • OSPFv2, OSPFv3
      • RIPv1, RIPv2, RIPng
      • BGPv4
      • EIGRP
      • PIM-SM (IPv4 and IPv6)
    • Policy Based Routing (PBR)*
    • Proxy ARP

    * Supported in 2026

  • Gateway

    • Edge-computing capabilities for user-defined applications
    • DDS standard and MQTT protocol support via KVM Virtual Machine

  • Synchronization

    • IEEE 1588-2008 v2 (PTPv2)
    • IEEE 1588 Stateless Transparent Clock (TC)
    • IEEE 1588 Ordinary Clock (Master-Slave)
    • Time Bridge operation: NTP ↔ PTP
    • NTP (Server/Client)

  • Security

    • IEEE 802.1X for port-based access control
    • MAC port binding & authentication
    • RADIUS authentication
    • RBAC
    • Selective port disabling
    • Unsecure protocol disabling
    • Ingress/egress port mirroring per port
    • HTTPS and SSH v2
    • TPM 2.0 IC
    • Firmware encryption/authentication/signature
    • IEEE 802.1AE – MACsec support
    • Custom ACL (L2, L3, L4)
    • VPN:
      • Site-to-site and remote
      • IPsec, L2TP, PPTP, Gretap, SSL-based OpenVPN
    • Stateful inspection firewall
    • IPS/IDS

  • Configuration & Management

    • HTTPS web interface
    • SSHv2 CLI
    • SNMP v1/v2c/v3
    • SNMP v3 encrypted access
    • SNMP over TLS
    • Encrypted and signed firmware/bitstream upgrades
    • Save/restore config
    • Status monitoring and logging
    • Per port statistics
    • Syslog notifications
    • DHCP/DHCPv6 server and relay
    • Built-in Test:
      • PBIT (Power-on)
      • CBIT (Continuous)
      • IBIT (Initiated)
    • In-band/out-of-band management
    • RS-232 console

  • Processing

    • Xilinx UltraScale+ MPSoC:
      • 2x 64bit ARM Cortex-A53
      • 2x 32bit ARM Cortex-R5F
      • 1x 16nm UltraScale+ FPGA
    • Up to 4GB DDR4 RAM
    • 32GB eMMC Flash
    • 512Mb QSPI Flash

  • Physical & Electrical Characteristics

    • Military certified fanless rugged design

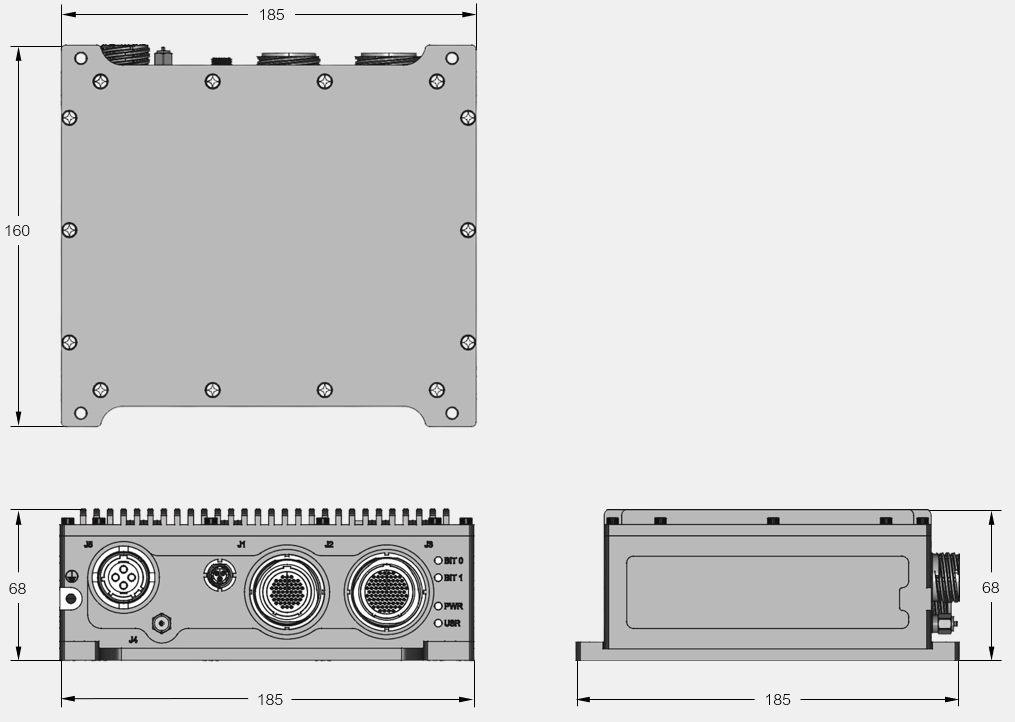

    • Dimensions (mm): 185(W) × 160(D) × 68(H)
    • Weight: 1.9kg
    • Power Input: 28VDC
    • Power consumption: TBD
    • D38999 connector with copper, fiber, power, RS-232, PPS

  • MTBF

    • TBD hours GB@25
    • MTTR: TBD hours

  • Warranty

    • 2 years

  • Export Control

    • ITAR Free

  • Certifications

    The following certifications are expected:

    • MIL-STD-461G: CE101–RE102, RS101–RS103
    • MIL-STD-810G: Methods 500.5–516.6
    • RTCA DO-160G: Section 4, 7–21, 25–26
    • MIL-STD-1275E
    • ESD EN61000-4-2
    • IEC-60529 – IP67
    • CE Certification

    For more info, contact your sales representative.
