RELY-10TSN12

12-port 1G/10G Time-Sensitive Networking Switch

Overview

Time-Sensitive Networking (TSN) seamlessly integrates critical and everyday traffic in a deterministic Ethernet network, offering significant cost savings and reducing dependence on a single vendor.

Built on the company’s proven TSN technology, RELY-10TSN12 is the evolution of the RELY-TSN12 which makes use of one of the great advantages of Ethernet: high bandwidth.

RELY-10TSN12 device features flexible port options, including 8x 10/100/1000Mbps copper ports and 4x 10GBASE-SFP multimedia ports, supporting a broad range of TSN standards for versatility. With proven reliability in different critical sectors, the RELY-10TSN12 simplifies management through an integrated Web Server for configuration, monitoring, and updates.

Applications for the RELY-10TSN12 span real-time precision testing, industrial equipment validation, process automation optimization, secure communication, educational advancements, prototype validation, scientific research, industrial process control, and seamless TSN application development.

Key Features

  1. 8x 10/100/1000BASE-T TSN ports and 4x 10GBASE-SFP TSN ports, supporting a wide range of TSN standars
  2. FPGA-based solution, powered with SOC-E´s in-house designed technology, to be easily upgraded as TSN standars evolves
  3. “Zero-Packet Loss” redundancy using TSN FRER for selected traffic combined with MSTP
  4. Simplified management and monitoring via a user-friendly HTTPS web interface or SSH accessible CLI. Compliant with Qcc for centralized configuration through YANG model configuration files
  5. Comprehensive TSN Ecosystem offering combined with SOC-E’s TSN Expertise, to deploy a turnkey project

Technical Specifications

  • Communication Interfaces

    • 4x 10GBASE-SFP TSN Ethernet ports
    • 8x 10/100/1000BASE-T(X) TSN Ethernet ports
    • 1x 10/100/1000BASE-T(X) Ethernet Service port
    • 1 x PPS output (SMA connector)

  • Layer 2 Features

    • IEEE 802.3-2008 (Ethernet)
    • Automatic MAC address learning and aging
    • Static MAC Table
    • Port-Based Virtual LANs (VLANs):
      • Logical segmentation of network for optimal use of bandwidth
      • IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
      • IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
    • IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
    • Port rate limiting
    • Storm control for flooded broadcast, multicast and unicast
    • Layer 2 multicast filtering
    • IGMP Snooping (up to 1024 multicast filters)
    • Spanning Tree Protocol:
      • IEEE 802.1D (STP)
      • IEEE 802.1w (RSTP)
      • IEEE 802.1s (MSTP)

  • TSN Features

    • IEEE 802.1AS – Timing and Synchronization
    • IEEE 802.1Qav – Credit Based Shaper (CBS)
    • IEEE 802.1Qbv – Time Aware Shaper (TAS)
    • IEEE 802.1Qci – Per-Stream Filtering and Policing
    • IEEE 802.1CB – Frame Replication and Elimination for Reliability (FRER)
    • IEEE 802.1Qcc – Stream Reservation Protocol (SRP) Enhancements and Performance Improvements

  • Security

    • IEEE 802.1X for port-based network access control
    • MAC port binding & authentication for login security
    • RADIUS authentication
    • RBAC (Role Based Access Control)
    • Selective ports disabling capability
    • Unsecure protocols disabling capability
    • Per port ingress and egress port mirroring including 10G mirroring
    • HTTPS for web interface
    • Secure Shell (SSH) Protocol v2 for command line interface
    • Encryption/authentication & signature for firmware and bitstream

  • Configuration & Management

    • HTTPS web interface
    • SSHv2 command line interface (CLI)
    • Netconf protocol (YANG model-based configuration) support
    • Encrypted and digitally signed firmware/bitstream upgrades
    • Saving and restoring configuration
    • Internal status monitoring and logging
    • Event notification through Syslog
    • Statistics independent per port
    • In-band management via any Ethernet switch port or out-of-band via Ethernet service port

  • Processing

    • Xilinx Ultrascale+ MPSoC device:
      • 4x 64bit CPU ARM-Cortex-A53
      • 2x 32bit CPU ARM-Cortex-R5F
      • 1x GPU ARM-Mali 400MHz
      • 1x 16nm UltraScale+ FPGA
    • 4GB DDR4 RAM memory
    • 32GB eMMC Flash memory
    • 512Mb QSPI Flash memory

  • Physical & Electrical Characteristics

    • Fanless design and full metal enclosure

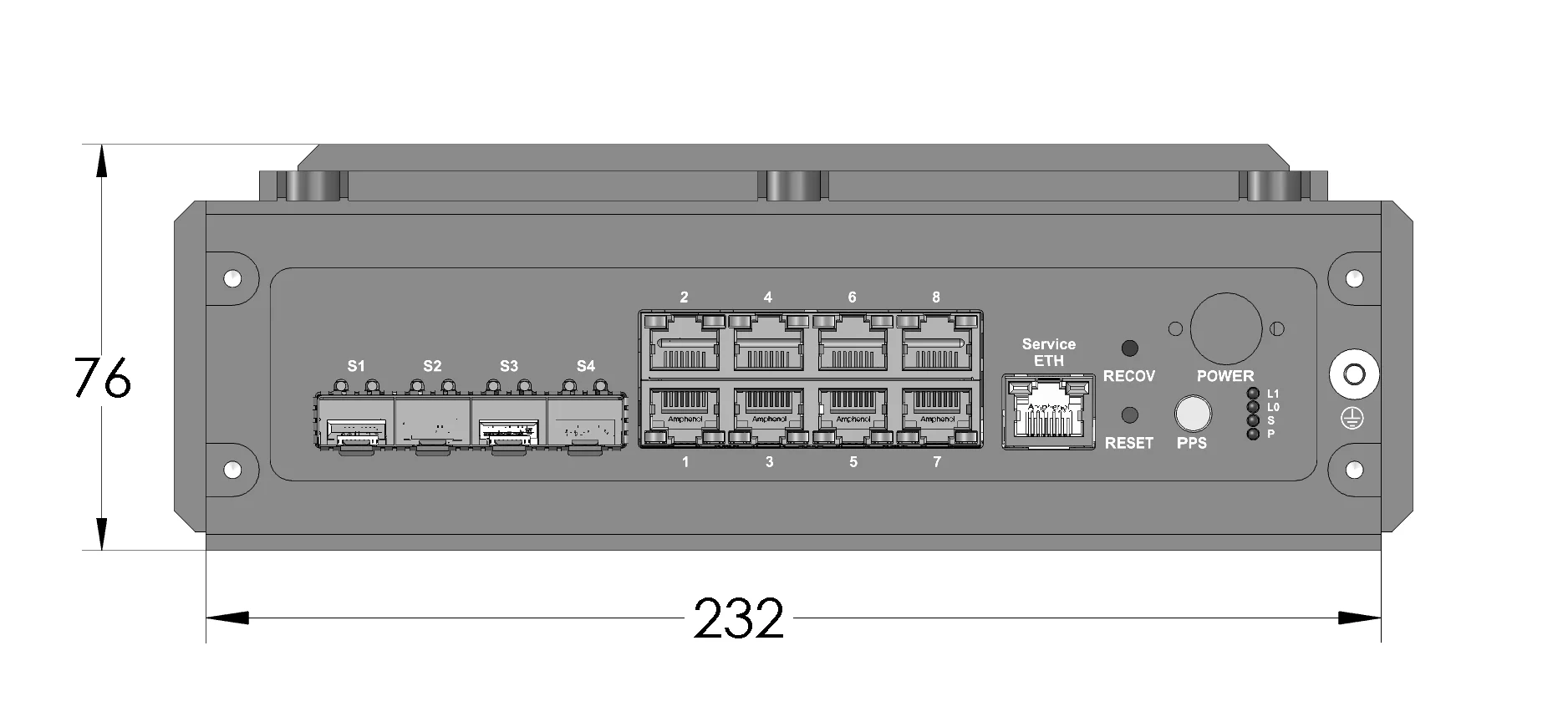

    • Dimensions (mm): 232(W) | 202(D) | 76(H)
    • Weight: 2.62kg
    • Power Input: 5VDC @ 10A
    • Included power adapter voltage range 100-240VAC
    • Power consumption: 15-25W
    • Operating temperature:
      • Power adapter: 0°C to +40°C
      • Equipment: – 40°C to +55°C
    • Storage temperature:
      • Power adapter: -20°C to +80°C
      • Equipment: -40°C to +85°C
    • Optional mounting over coldplate

  • MTBF (only equipment)

    • 500,000 hours GB@25 (w/out external power adapter)
    • MTTR = 0.5 hour (w/out external power adapter)

  • Warranty

    • 2 years

  • Certifications

    • UNE-EN 61326-1:2013
    • UNE-EN 61326-2-1:2013
