Overview
Critical systems demand time-aware high-availability networking. Moreover, the complexity of the modern network infrastructures in these premises overcomes the traditional concept of “managed” device.
RELY-RB is a new concept of intelligent device that integrates advanced field-proven technology for “Zero-Packet Loss” redundant Ethernet, sub-microsecond synchronization and cybersecurity. This device is able to merge the whole LAN with redundant networks, to interconnect PRP and HSR networks and to extend HSR rings via QuadBox operation.
Key Features
- Full in-house design (SOC-E IP Cores) based on a reconfigurable platform, upgradable and customizable
- Support for HSR/PRP “Zero-Packet Loss” redundancy and NTP/PTP sub-microsecond synchronization
- Support for QuadBox operation modes: HSR-HSR, HSR-PRP.
- Simplified management and monitoring via a user-friendly HTTPS web interface or SSH accessible CLI
Technical Specifications
Communication Interfaces
- 2x 100/1000BASE-SFP HSR/PRP Ethernet ports
- 2x 100/1000BASE-SFP Regular Ethernet ports (Redbox interlink)
- 1x 10/100/1000BASE-T(X) Ethernet Service port
- 1x PPS output (MCX connector)
Layer 2 Features
- IEEE 802.3-2008 (Ethernet)
- Automatic MAC address learning and aging
- Static MAC Table
- Port-Based Virtual LANs (VLANs):
- Logical segmentation of network for optimal use of bandwidth
- IEEE 802.1Q for VLAN tagging (up to 4K VLAN groups)
- IEEE 802.1p for Class of Service (CoS) / Quality of Service (QoS)
- Switching port mask for forwarding
- Port rate limiting
- Storm control for flooded broadcast, multicast and unicast
- Layer 2 multicast filtering
- Zero-Recovery Time redundancy:
- High-availability Seamless Redundancy (HSR) – IEC 62439-3 Clause 5
- Supported modes: H, N, U, HSR-SAN, PRP-HSR, HSR-HSR
- Cut-through operation for the HSR ring to minimize the latency in the ring
- Parallel Redundancy Protocol (PRP) – IEC 62439-3 Clause 4
- Supported modes: Duplicate discard, duplicate accept, transparent reception, PRP-HSR
- Store & Forward for PRP and Ethernet operation
- Spanning Tree Protocol:
- IEEE 802.1w (RSTP)
Synchronization
- IEEE 1588-2008 v2 (PTPv2)
- IEEE 1588 Stateless Transparent Clock (TC)
- IEEE 1588 Ordinary Clock (Master-Slave)
- NTP (Server/Client)
Security
- IEEE 802.1X for port-based network access control
- MAC port binding & authentication for login security
- RADIUS authentication
- RBAC (Role Based Access Control)
- Selective ports disabling capability
- Unsecure protocols disabling capability
- Per port ingress port mirroring
- HTTPS for web interface
- Secure Shell (SSH) Protocol v2 for command line interface
- Encryption/authentication & signature for firmware and bitstream
Configuration & Management
- HTTPS web interface
- SSHv2 command line interface (CLI)
- SNMP V1/V2c/V3 protocol support
- SNMP V3 encrypted authentication and access security
- Encrypted and digitally signed firmware/bitstream upgrades
- Saving and restoring configuration
- Internal status monitoring and logging
- Graphic representation of HSR/PRP network status
- Statistics independent per port
- In-band management via any Ethernet switch port or out-of-band via Ethernet
service port
Processing
- Xilinx Zynq-7000 SoC device:
- 2x 32bit CPU ARM-Cortex-A9
- 1x 28nm Programmable FPGA
- 1GB DDR3 RAM memory
- 16GB eMMC Flash memory
- 256Mb QSPI Flash memory
Physical & Electrical Characteristics
- Fanless design and full metal enclosure

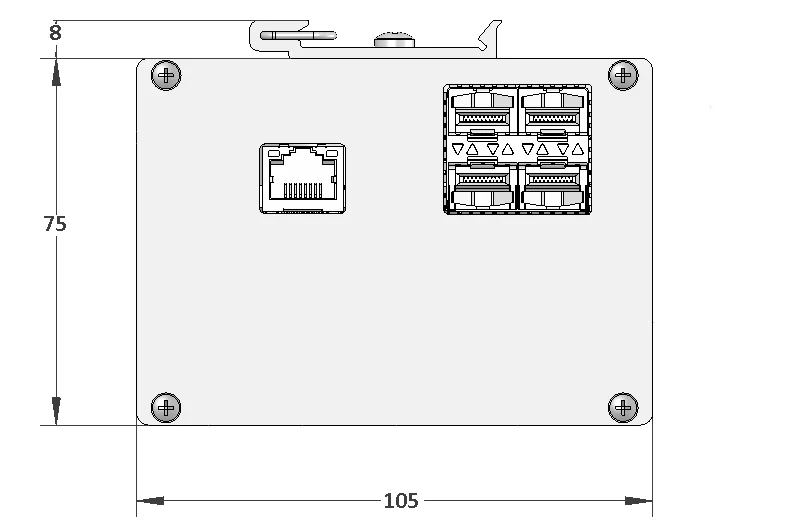

- Dimensions (mm):
- RELY-RB 12VDC: 105(W) | 164(D) | 44(H)
- RELY-RB 48VDC & 125VDC: 105 (W) | 164 (D) | 75(H)
- Weight: 1kg
- Power input:
- RELY-RB 12VDC: 9VDC to 30VDC
- RELY-RB 48VDC: 36VDC to 75VDC
- RELY-RB 125VDC: 36VDC to 150VDC
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +85°C
- Optional mounting: DIN rail
Warranty
- 2 years
Certifications
- UNE-EN 61326-1:2013
- UNE-EN 61326-2-1:2013
- IEC 61850-3:2013
Downloads
pdf
Gallery
RELY-RB
