High Availability Switch Routers

Modern warfare systems demand modular, open and scalable architectures, to evolve with the latest technologies as they come to the market. In addition, speed is critical in defence applications, whether it is the response time of soldiers in the field or the speed at which information is communicated from the field to outposts or command centres.

In response to the continued move towards real-time, high-bandwidth and open networks, RelyUm Rugged has developed its COTS switch router product line, which combines the most highly available, low-latency networking technology with time server, edge computing and firewall capabilities in a single device.

Technologies

  • Managed Regular Ethernet: Head-of-Line blocking free architecture for full-speed switching at 1G/10G and low-latency (MAC queries parallelization)
  •  “Zero Recovery Time” Redundancy:
    • PRP (IEC 62349-3 Clause 4)
    • HSR (IEC 62349-3 Clause 5)
  • Static and Dynamic Routing (OSPFv2, OSPFv3, RIPv1, RIPv2, RIPng, BGPv4, EIGRP, PIM-SM)
  • PTP v2 (IEEE 1588-2008 v2), NTP, IRIG-B
  • MACsec (IEEE 802.1AE) for point-to-point security on Ethernet links
  • IEEE 802.1X for port-based network access control
  • Upgradability thanks to an FPGA design-based product

Applications

Implementation of a reliable Digital Backbone (DBB) for aerospace and defence sector:

  • Land vehicles LAN systems
  • Airborne onboard systems
  • Naval LAN systems
  • Ground – Air communications

Products

Featured image

MIL-SR / MIL-10SR

  • Form Factor Standalone chassis
  • Communication Interfaces up to 22x 1G copper ports, up to 6x 1G/10G fibre optic ports
  • Networking Ethernet, L2/L3, HSR/PRP
  • Synchronization PTP (IEEE 1588), NTP, IRIG-B
  • CybersecurityMACsec, IEEE 802.1X
  • Other FeaturesEdge Computing, time server (optional), MIL-STD-810, MIL-STD-461, MIL-STD-704, MIL-STD-1275, TEMPEST
Featured image

MILS0802-SR

  • Form FactorSmall Form Factor (SFF) chassis

  • Communication Interfaces8x 1G copper ports, 2x 1G fibre optic ports

  • NetworkingEthernet, L2/L3

  • SynchronizationPTP (IEEE 1588), NTP

  • CybersecurityMACsec, IEEE 802.1X

  • Other FeaturesEdge Computing, MIL-STD-810, MIL-STD-461, MIL-STD-1275

Featured image

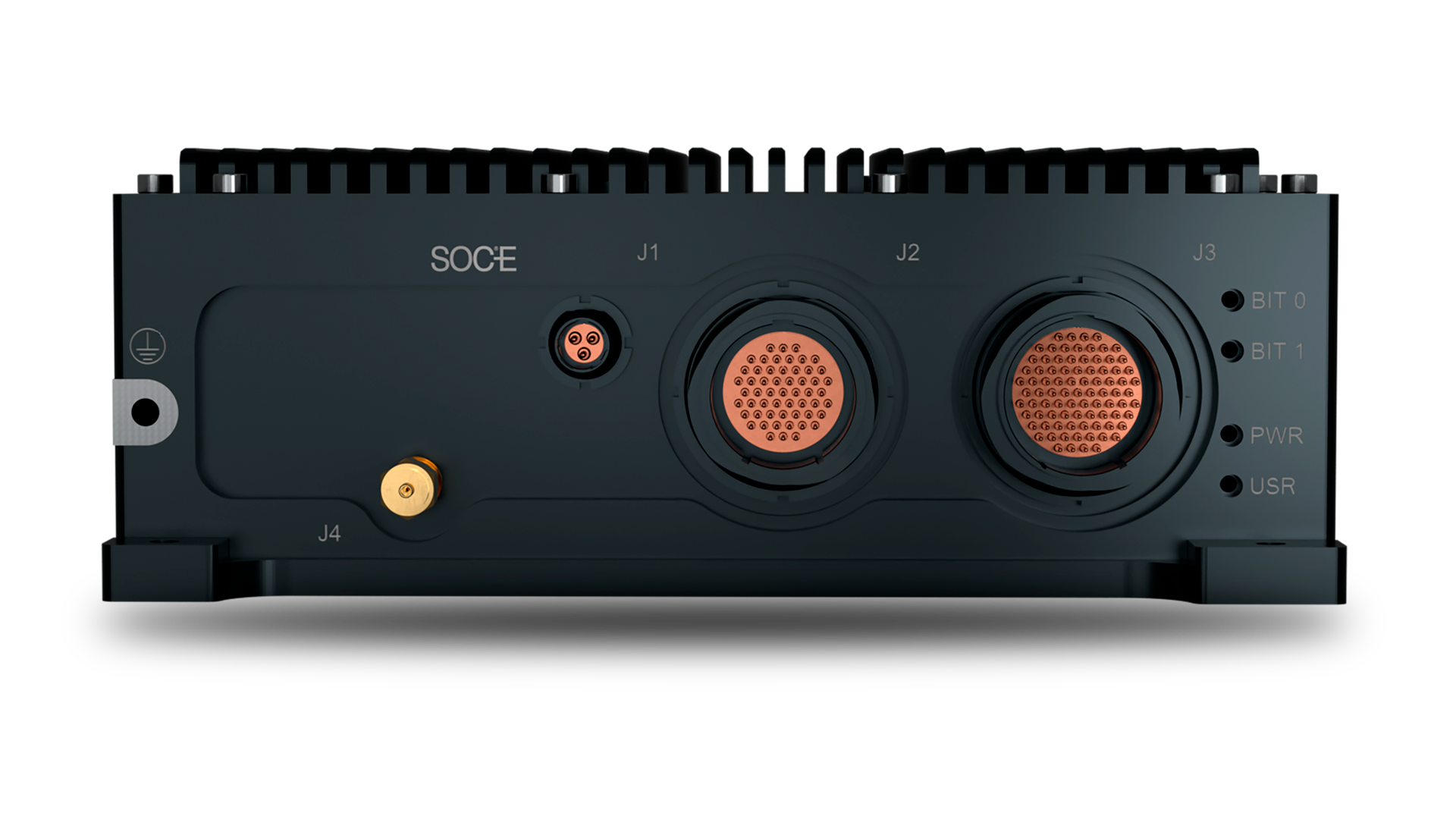

MILS0800-SR

  • Form FactorSmall Form Factor (SFF) chassis
  • Communication Interfaces8x 1G copper ports
  • NetworkingEthernet, L2/L3
  • SynchronizationNTP
  • CybersecurityTPM 2.0, secure upgrades
  • Other FeaturesEdge Computing, MIL-STD-810, MIL-STD-461, MIL-STD-1275
Featured image

XMC-SR / XMC-10SR

  • Form Factor XMC
  • Communication Interfaces up to 17x 1G/10G ports
  • Networking Ethernet, L2/L3, HSR/PRP
  • Synchronization PTP (IEEE 1588), NTP, IRIG-B
  • CybersecurityMACsec, IEEE 802.1X
  • Other FeaturesEdge Computing VITA 42.0/61.0/42.3
Featured image

XMCL-RB

  • Form Factor XMC

  • Communication Interfaces 2x 1G ports

  • NetworkingEthernet, L2/L3, HSR/PRP

  • SynchronizationPTP (IEEE 1588), NTP, IRIG-B

  • CybersecurityIEEE 802.1X

  • Other FeaturesEdge Computing VITA 42.0/61.0/42.3
