Deterministic Ethernet Switches and EndPoint Switches

In the modern battlefield, embedded edge systems are used to collect, analyse and communicate data from the field in real-time, driving a need for deterministic network protocols.

Time-Sensitive Networking (TSN) is the new generation Ethernet that allows merging in the same network hard real-time, soft real-time and best effort traffic.

This technology ensures the timely delivery of messages, and the interoperability of all the devices on a deterministic Ethernet network, to meet the needs of applications such as radar, electronic warfare, signals intelligence or weapons control systems, that have extremely tight latency constraints.

RelyUm Rugged offers a comprehensive range of COTS switches and endpoint switches to cover the requirements of these mission-critical applications.

Technologies

  • Time-Sensitive Networking (TSN)
    • IEEE 802.1AS – Timing and Synchronization
    • IEEE 802.1Qav – Credit Based Shaper (CBS)
    • IEEE 802.1Qbv – Time Aware Shaper (TAS)
    • IEEE 802.1Qci – Per-Stream Filtering and Policing
    • IEEE 802.1CB – Frame Replication and Elimination for Reliability (FRER)
    • IEEE 802.1Qcc – Stream Reservation Protocol (SRP) Enhancements and Performance Improvements
  • Netconf and YANG modelled files
  • MACsec (IEEE 802.1AE) for point-to-point security on Ethernet links and IEEE 802.1X for port-based network access control
  • Upgradability thanks to an FPGA design-based product adaptable to new TSN protocols and features as they evolve

Applications

Implementation of a deterministic and reliable Digital Backbone (DBB) for aerospace and defence sector:

  • Land vehicles LAN systems
  • Airborne onboard systems
  • Naval LAN systems
  • Ground – Air communications

Products

Featured image

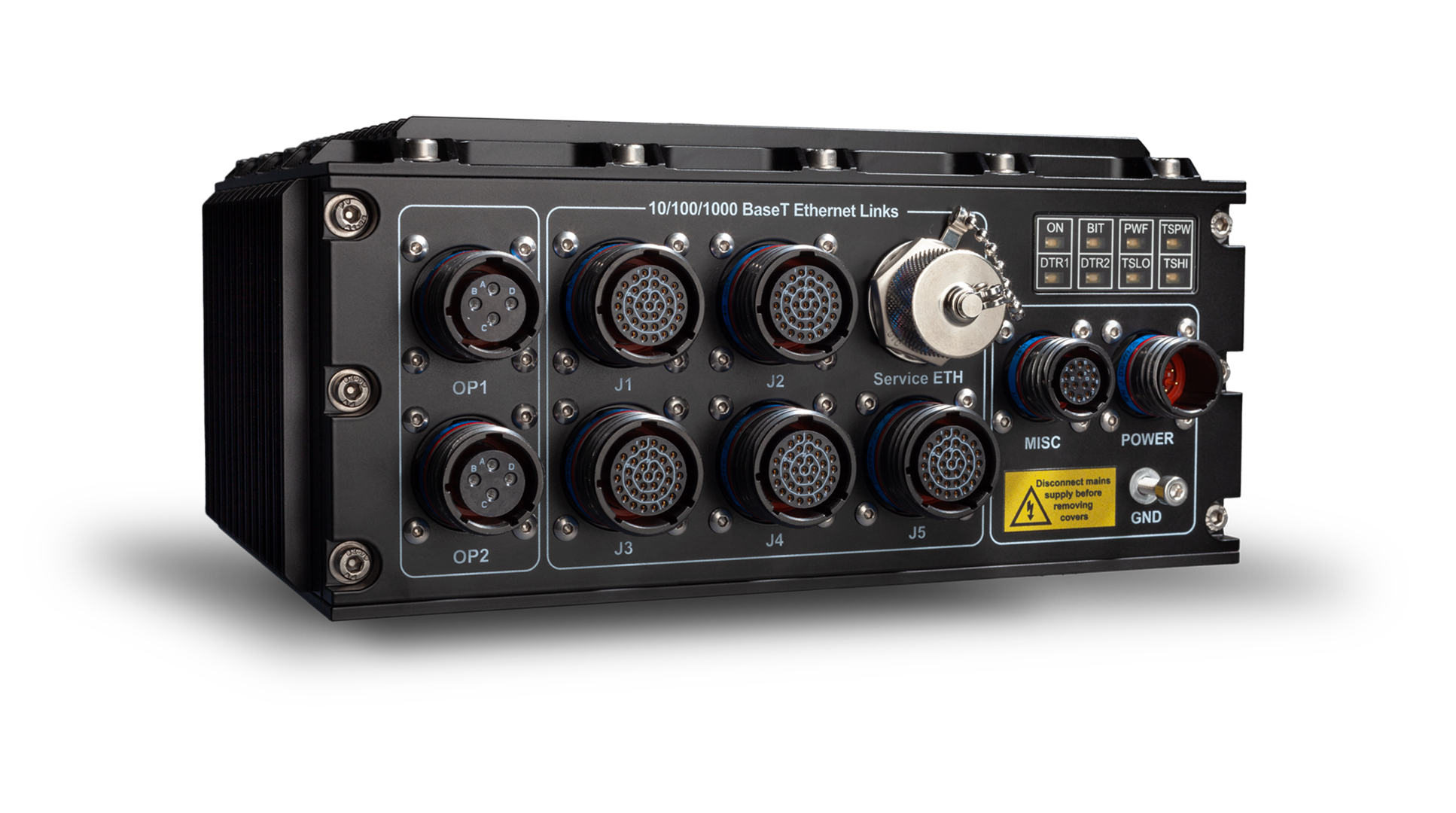

MIL-TSN / MIL-10TSN

  • Form Factor Standalone chassis

  • Communication Interfaces up to 22x 1G copper ports, up to 6x 1G/10G fibre optic ports

  • Networking Ethernet, TSN
  • Synchronization IEEE 802.1AS, NTP, IRIG-B
  • CybersecurityMACsec, IEEE 802.1X, Firewall and VPN tunnels (optional)
  • Other FeaturesEdge Computing, time server (optional), MIL-STD-810, MIL-STD-461, MIL-STD-704, MIL-STD-1275
Featured image

XMC-TSN / XMC-10TSN

  • Form Factor XMC

  • Communication Interfaces up to 17x 1G/10G ports

  • Networking Ethernet, TSN

  • Synchronization IEEE 802.1AS, NTP, IRIG-B

  • CybersecurityMACsec, IEEE 802.1X, Firewall and VPN tunnels (optional)

  • Other FeaturesEdge Computing VITA 42.0/61.0/42.3

Featured image

XMCL-EP / XMCL-10EP

  • Form Factor XMC

  • Communication Interfaces 2x 1G/10G ports

  • Networking Ethernet, TSN

  • SynchronizationIEEE 802.1AS, NTP, IRIG-B

  • CybersecurityIEEE 802.1X

  • Other FeaturesEdge Computing VITA 42.0/61.0/42.3
