Secure Switch Routers

The arrival of the information age has transformed conflict between states. Exploiting electronic devices to alter or obtain information has become a new tactic known as the ‘fifth dimension battlefield, after air, sea, land and outer space’* and therefore any equipment used in today’s warfare systems must be able to withstand constantly evolving cyber-attack defences.

To protect against these threats, RelyUm Rugged has developed the Secure Switch Router product line, which combines a comprehensive set of physical and logical cybersecurity means, with switching, routing, time server and edge computing capabilities in a single device.

*Finkelstein and Govern, 2015

Technologies

  • Firewall and IPS/IDS
  • VPN (IPsec, L2TP, PPTP, Gretap) tunnels
  • MACsec (IEEE 802.1AE) for point-to-point security on Ethernet links
  • IEEE 802.1X for port-based network access control
  • Upgradability thanks to an FPGA design-based product resilient to new cybersecurity threats
  • Managed Regular Ethernet: Head-of-Line blocking free architecture for full-speed switching at 1G/10G and low-latency (MAC queries parallelization)
  • Static and Dynamic Routing (OSPFv2, OSPFv3, RIPv1, RIPv2, RIPng, BGPv4, EIGRP, PIM-SM)
  • PTP v2 (IEEE 1588-2008 v2), NTP, IRIG-B

Applications

Network protection against external (malware attacks, hacking attempts, etc.) and insider threats through cybersecurity mechanisms such us traffic filtering, access blocking and control (firewalling), secure remote access (VPN tunnels), logging and audit functions, etc. in:

  • Land LAN systems
  • Airborne LAN systems
  • Naval LAN systems
  • Ground-Air communications

Products

Featured image

MIL-SSR / MIL-10SSR series

  • Form Factor Standalone chassis
  • Communication Interfaces up to 22x 1G copper ports, up to 6x 1G/10G fibre optic ports
  • Networking Ethernet, L2/L3, HSR/PRP
  • Synchronization PTP (IEEE 1588), NTP, IRIG-B
  • CybersecurityMACsec, IEEE 802.1X, Firewall and VPN tunnels
  • Other FeaturesEdge computing, time server (optional), MIL-STD-810, MIL-STD-461, MIL-STD-704, MIL-STD-1275, TEMPEST
Featured image

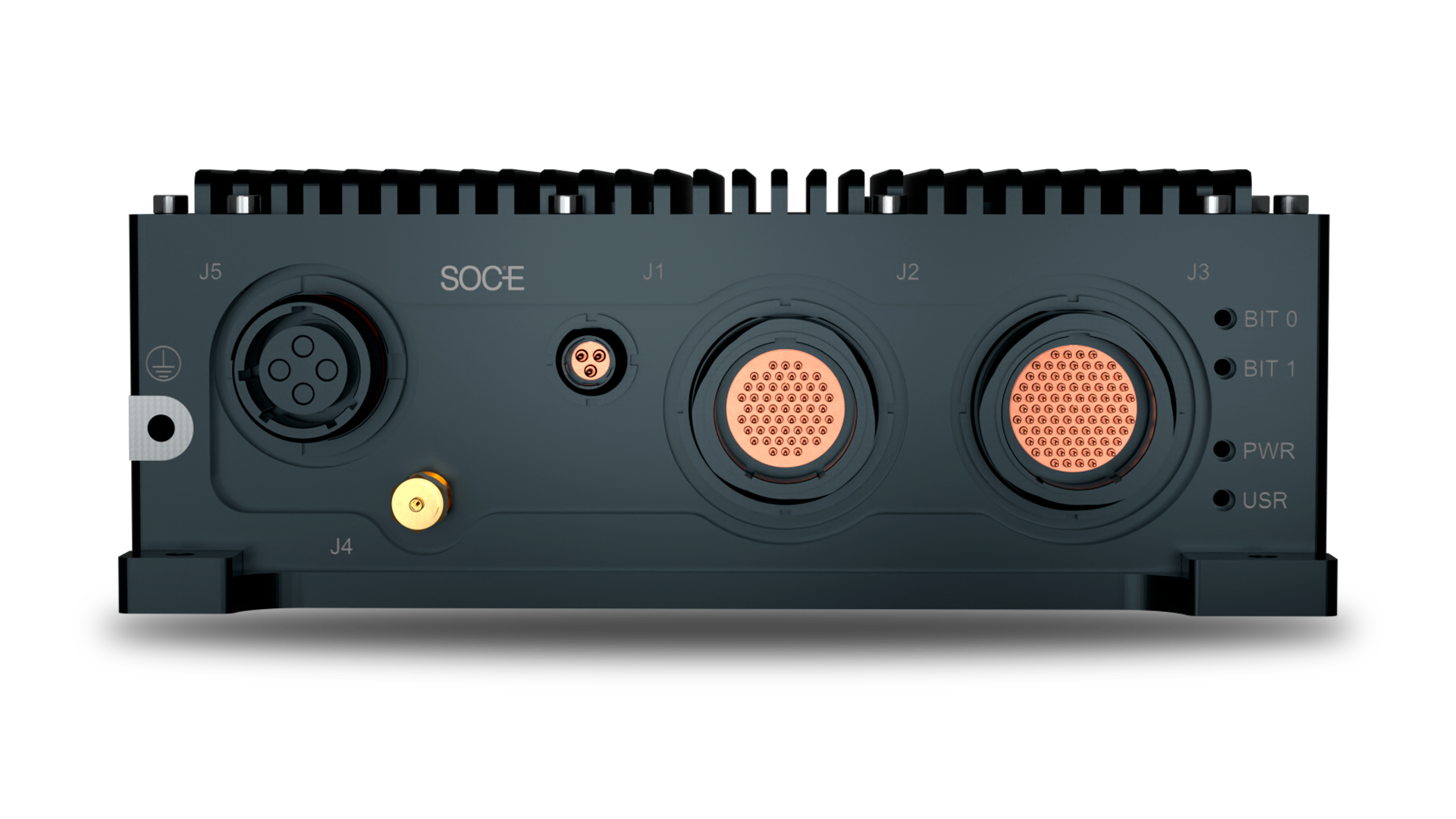

MILS0802-SSR

  • Form FactorSmall Form Factor (SFF) chassis
  • Communication Interfaces8x 1G copper ports, 2x 1G fibre optic ports
  • NetworkingEthernet, L2/L3
  • SynchronizationPTP (IEEE 1588), NTP
  • CybersecurityMACsec, IEEE 802.1X, Firewall and VPN tunnels
  • Other FeaturesEdge Computing, MIL-STD-810, MIL-STD-461, MIL-STD-1275
Featured image

XMC-SSR / XMC-10SSR series

  • Form Factor XMC

  • Communication Interfaces up to 17x 1G/10G ports

  • Networking Ethernet, L2/L3, HSR/PRP

  • Synchronization PTP (IEEE 1588), NTP, IRIG-B

  • CybersecurityMACsec, IEEE 802.1X, Firewall and VPN tunnels

  • Other Features Edge Computing VITA 42.0/61.0/42.3, SOSA
