The SMARTzynq Brick provides an out-of-the-box set-up for 1588-aware HSR/PRP High-Availability Ethernet networking. It is based on SoC-e SMARTzynq module that includes Xilinx Zynq-7000 reconfigurable platform device. It embeds Linux OS and the SoC-e IPs required to implement autonomous HSR/PRP, Managed Ethernet , IEEE 1588 and other SoC-e solutions, even combined with user logic.

It is also a great option for evaluating SoC-e IP Cores, as it is just a Plug&Play solution that does not require any kind of integration work from the customer. The hardware can also be used later as a development platform, what allows to shorten the development phase.

SMARTzynq Brick electronic components are Industrial or Automotive grade. Additionally, it allows a broad DC voltage input and all the required protections to allow using this board in field (e.g.: inside Industrial equipment or racks, CNC machines, etc.).

SMARTzynq Brick consist on the following package:

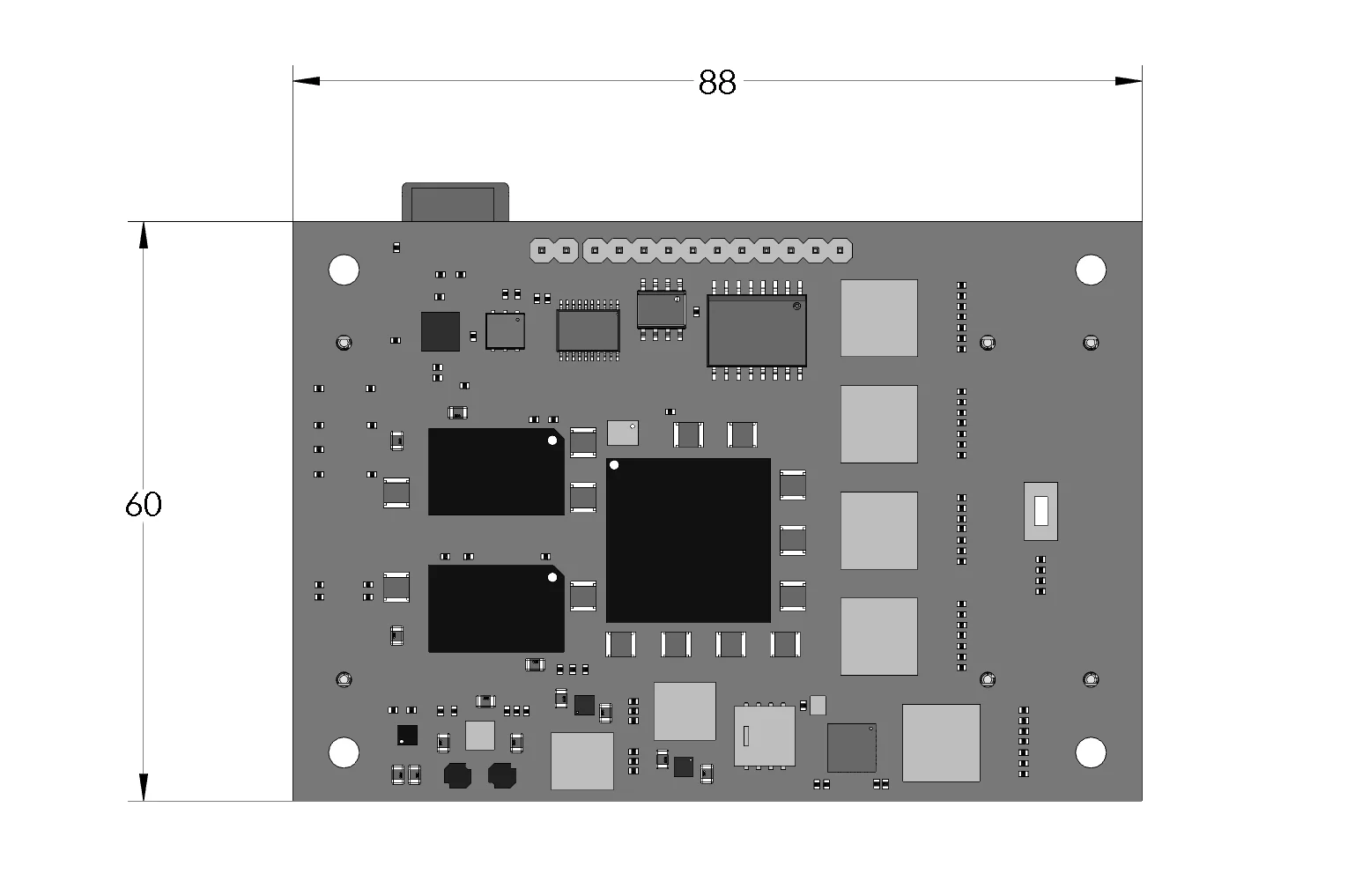

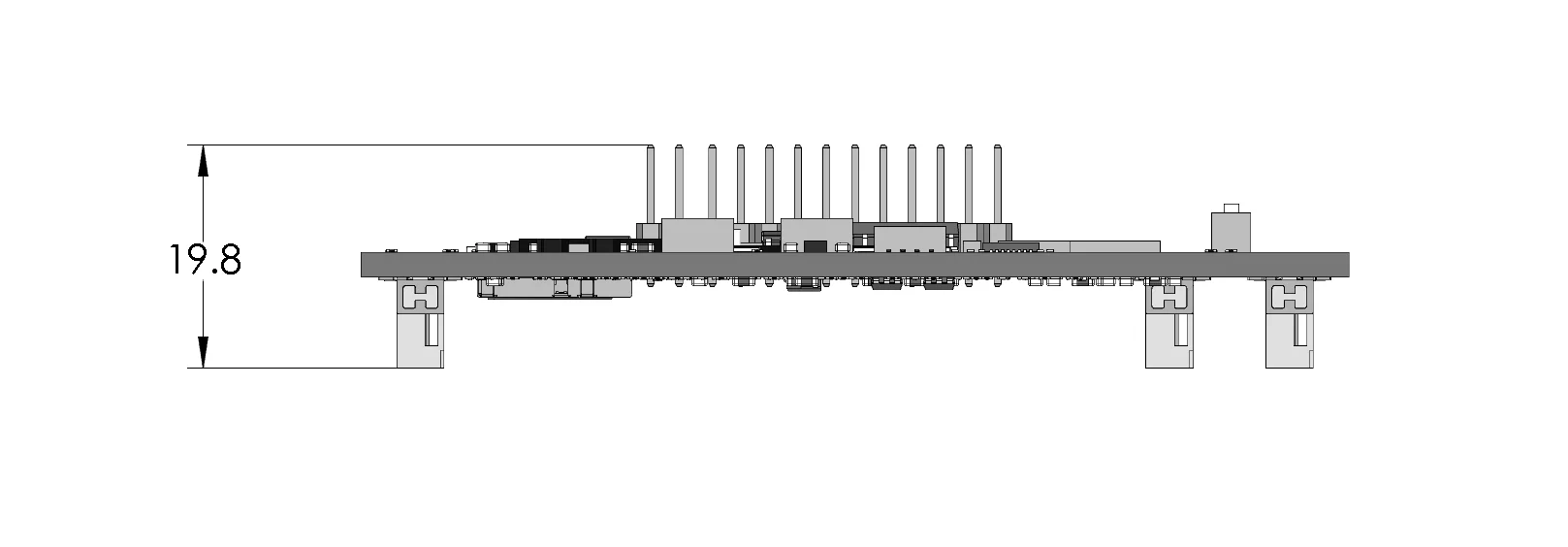

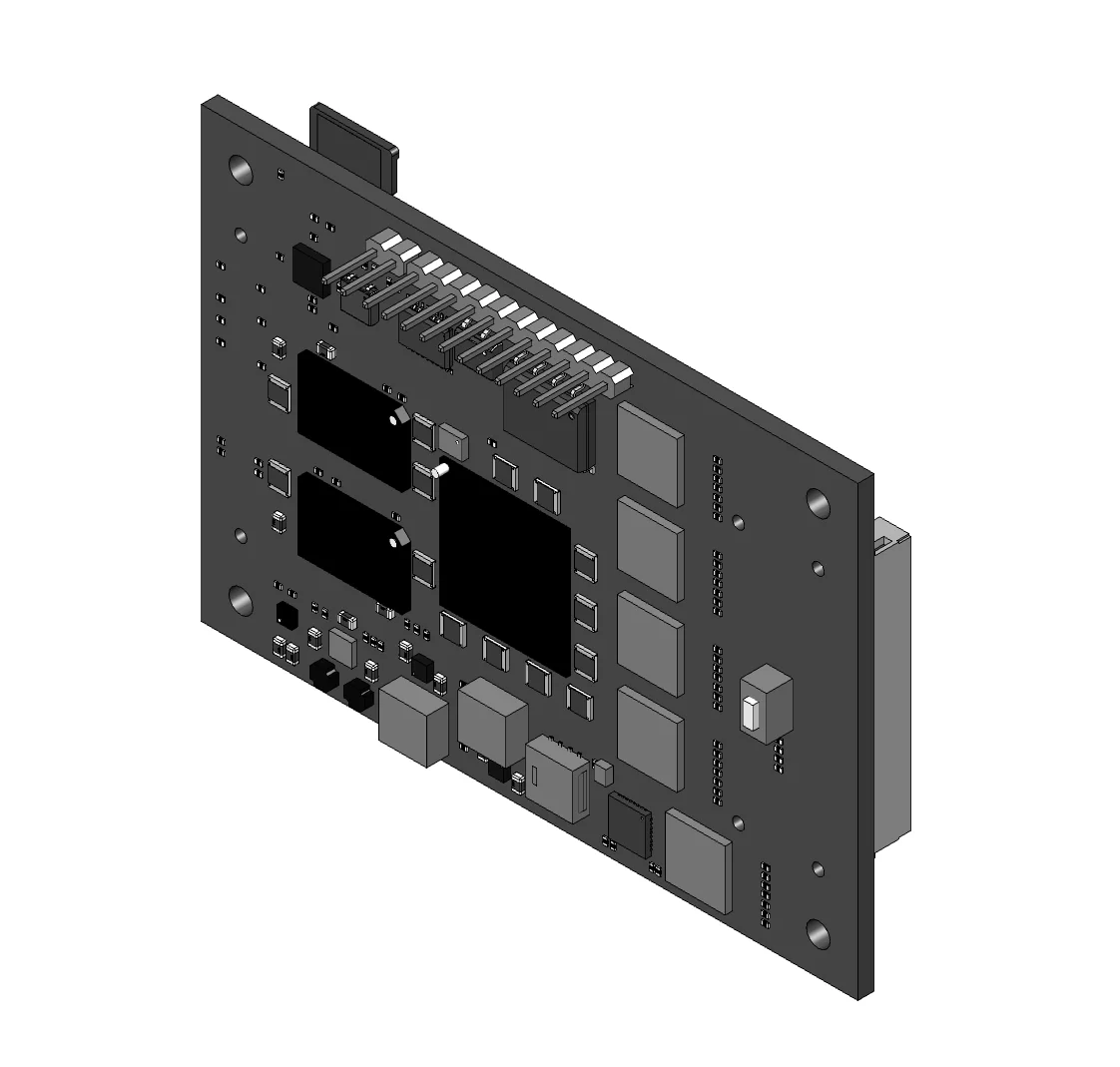

  • SMARTzynq module
  • SMARTzynq carrier:
    • 4x SFP cages for 10/100/1000Base-T, 100Base-FX or 1000Base-X
    • 1x RJ45 for 10/100/1000Base-T
    • UART console (USB)
    • 6V-30V DC (Power supply included)
    • 2x PMOD connectors
  • SD Card with the Reference Design
  • Power Supply
  • USB B cable
  • Fiber/Copper SFP modules (optional)

To order SMARTzynq family products, please refer to the to our authorized distributors or contact us at info@soc-e.com.

SMARTzynq Brick downloadable information:
